Controlando LED com arduíno

Sobre esse artigo

Autor: sam — sam@cubietech.com — 2014/02/25 14:41
Copyrights: CC Attribution-Share Alike 3.0 Unported
Contribuidores: Cubieboard Community : …

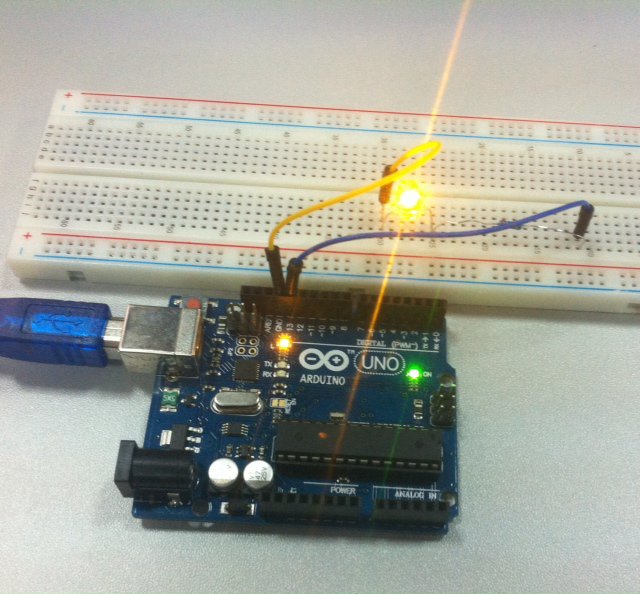

Faça as luzes de LED piscarem

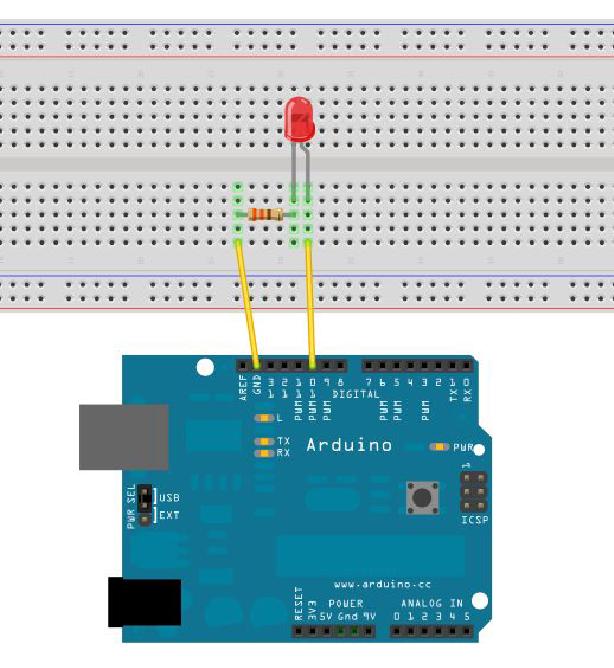

Diagrama Esquemático

Passo-a-Passo

1. Você deve instalar arduino ide. Please refer to how to connect cubieboard and arduino

2. Conecte o arduino e led como a figura acima

3. Use usb conectar o arduino e cubieboard .

4. Então podemos começar a escrever programas no arduino ide. Ainda fazemos as luzes LED piscarem.

Source Code

int ledPin = 10;            //Defining Digital Interface 10
  void setup()
  {
  pinMode(ledPin, OUTPUT);    //Definition of small lights interface output interface
  }
  void loop()
  {
  digitalWrite(ledPin, HIGH); //Lit lamp
  delay(1000);                //Delay 1 second
  digitalWrite(ledPin, LOW);  //Extinguish  lamp
  delay(1000);                //Delay 1 second
  }
